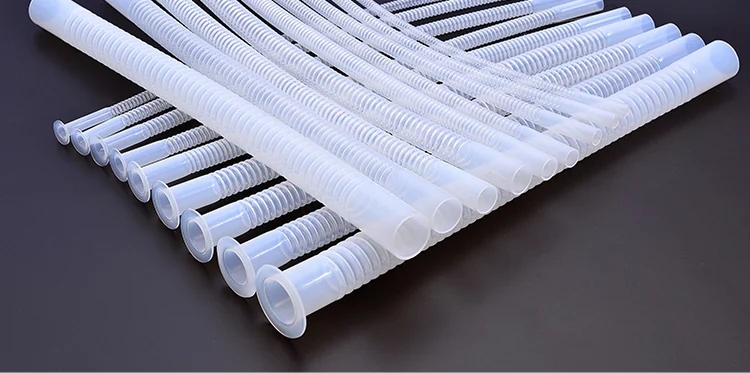

Polytetrafluoroethylene (PTFE) corrugated tubes have become core components in high-end industrial fields such as chemical, semiconductor, food and medicine due to their unique material properties and structural design. Its comprehensive performance far exceeds that of traditional pipes, and its irreplaceability is analyzed from the following five core advantages.

1、 Excellent chemical stability: resistant to extreme corrosive environments
PTFE corrugated pipe is known as the "king of corrosion resistance", and its material inertness allows it to resist almost all chemical media erosion:
• Comprehensive corrosion resistance: resistant to strong corrosive media such as concentrated sulfuric acid, nitric acid, aqua regia, hydrofluoric acid, etc., even in high temperature environments, it will not undergo chemical reactions or performance degradation.
• No contamination risk: As a food grade material, it complies with FDA and NSF/ANSI 51 certifications, is non-toxic and odorless, ensuring no contamination from dissolved substances when transporting food and drugs.
Application scenarios: acid solution transportation in chemical reaction vessels, semiconductor etching solution transportation, high-purity reagent pipelines, and other harsh environments.
2、 Extremely wide temperature range adaptability: stable operation from -200 ℃ to+260 ℃
The temperature resistance performance of PTFE corrugated pipes covers common extreme temperature scenarios in industry:
High temperature stability: Long term tolerance to high temperatures of 260 ℃ (up to 300 ℃ in a short period of time), suitable for high-temperature sterilization (such as 134 ℃ steam disinfection), heat exchanger steam piping and other scenarios, without softening deformation.
Low temperature toughness: It maintains flexibility even at ultra-low temperatures of -200 ℃ (such as liquid nitrogen environment), avoiding brittle fracture, and is suitable for low-temperature fuel transportation in aerospace.
• Thermal cycling durability: Passed ASTM D794 thermal aging test, can withstand repeated temperature shocks.
3、 Low friction and self-lubricating properties: the key to energy conservation and consumption reduction
The physical properties of PTFE material itself endow corrugated pipes with efficient conveying capacity:
The friction coefficient is the lowest (0.04), close to the ice surface, significantly reducing fluid resistance, reducing pumping energy consumption, and achieving oil-free lubrication.
The surface is non sticky (with a surface energy of only 18.5mN/m), preventing materials from adhering to the pipe wall, avoiding blockages caused by food residues and chemical crystallization, and reducing maintenance frequency.
Long wear life: Dynamic bending life exceeds 500000 times (ISO 6603 test), suitable for high-frequency motion scenarios such as hydraulic systems and pneumatic equipment.
4、 Dual Evolution of Structural Design: Flexibility and Mechanical Strength
The shape of the corrugated tube and the composite process further expand its functional boundaries:
Ripple flexible design: U-shaped/Ω - shaped corrugated structure provides 30%~50% free length compensation, can absorb ± 50mm displacement and 20Hz vibration, and adapt to complex pipeline layouts.

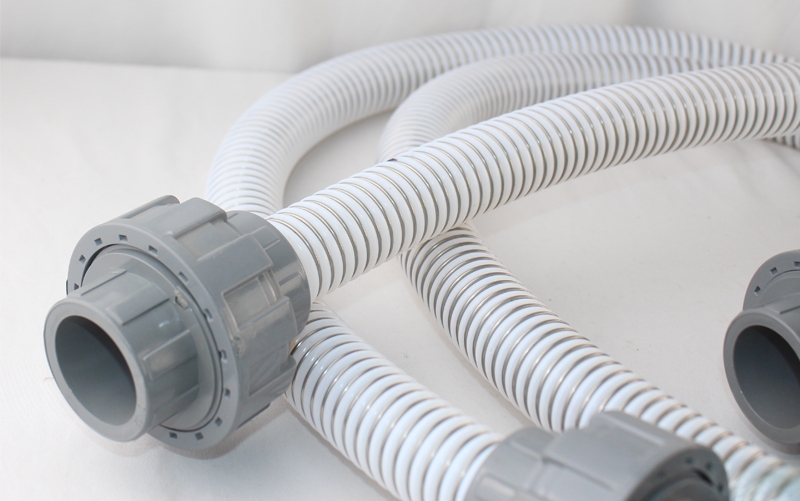

Composite reinforcement technology: By using stainless steel wire weaving layer (compressive strength up to 4MPa) or fiberglass epoxy outer layer, it has the ability to resist collapse and negative pressure, and can be extended to high-pressure hydrogen energy pipelines (70MPa) and other scenarios.
Intelligent integration trend: embedded fiber optic sensors for real-time monitoring of strain, or coated with anti-static/antibacterial coatings (such as nano silver particles) to meet the requirements of semiconductor cleanrooms (Ra ≤ 0.2 μ m) and medical sterility.
5、 Safety and reliability: insulation, flame retardancy, and long lifespan
PTFE corrugated pipes ensure system safety in critical facilities:
• Electrical insulation: Volume resistance>1018 Ω· cm, high breakdown voltage, used for cable sheath and electrical component packaging to prevent short circuits.
Flame retardancy: Oxygen limit index>95%, non flammable and non combustible, certified by UL94 V-0, suitable for flammable and explosive environments.
• Lifespan and maintenance: With a lifespan of over 10 years in corrosive environments and clear failure warning indicators (such as replacement if cracking>2mm), it supports predictive maintenance.
Conclusion
PTFE corrugated pipes reshape industrial transmission standards at the boundary between corrosion and cleanliness, with chemical inertness as the shield and geometric flexibility as the spear. Its five major advantages - corrosion resistance, wide temperature range, low friction, flexible composite, and high safety - make it an "invisible guardian" in fields such as chemical engineering, semiconductors, and new energy. In the future, with the integration of 3D printing and smart materials, PTFE corrugated pipes with adaptive deformation and self sensing damage will further promote the intelligent process of Industry 4.0.
