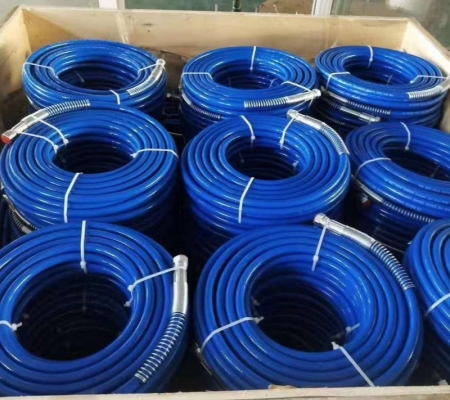

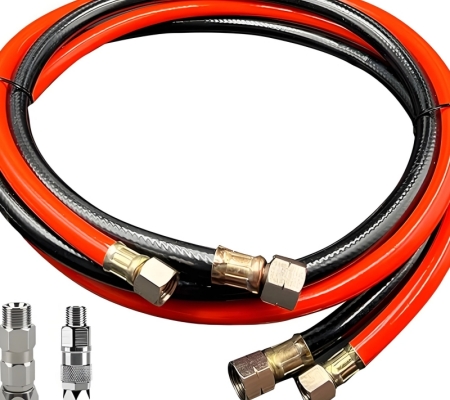

Paint Spray Hose

An airless paint spraying system gives a glass-smooth layer of coating over surfaces that is practically impossible to achieve using a brush or roller. The paint Spray Hose is the most important part in the system.

Paint Spray Hose Structure:

Inner tube: Internal Core is polyamide。

Reinforcement: 1 or 2 layers of high tensile aramidic braid with antistatic polymerice braid。

Outer tube: blue pin pricked polyurethane  high abrasion resistance。

Safety factor: 4:1

Airless Sprayer Hose Application:

Paint sprat gun hose is designed for high pressure airless spray systems, suitable for paint, solvents and aggressive fluids

Temperature: -40℃(-72℃) to +100℃ (+212 °F）

Airless Paint Sprayer Hose Features:

● High abrasion resistance cover

● High pressrue Max W.P.50Mpa

● Chemical and solvents resistant


SIZE Model No I.D. O.D. Working Pressure    Burst Pressure Min. Bend Radius  SIZE Model No I.D. O.D. Working Pressure    Burst Pressure Min. Bend Radius
mm mm bar bar mm mm mm bar bar mm
GS-4 1 4 9.1 450 1,350 70 GS-19 1 19 25.3 130 390 200
2 4 10.8 650 1,950 75 2 19 27 200 600 210
3 4 10.3 750 2,250 100 3 19 30 280 840 280
4 4 12 1,200 3,600 110 4 19 33 460 1,380 290
GS-6 1 6 11.3 400 1,200 80 GS-22 1 22 28.5 110 330 220
2 6 13 600 1,800 85 2 22 30.2 170 510 230
3 6 12.4 700 2,100 110
4 6 14 1,000 3,000 120
GS-8 1 8 13.3 300 900 100 GS-25 1 25 31.7 100 300 250
2 8 15.1 450 1,350 105 2 25 33.4 150 450 260
3 8 14.7 600 1,800 120 3 25 36 210 630 400
4 8 16.1 800 2,400 130 4 25 39 350 1,050 420
GS-10 1 10 15.4 250 750 120 GS-32 1 32 38.9 70 210 280
2 10 17.2 350 1,050 125 2 32 40.6 110 330 290
3 10 17.7 550 1,650 140 3 32 47 200 600 450
4 10 19.9 800 2,400 150 4 32 50 320 960 470
GS-13 1 13 18.7 200 600 150 GS-38 1 38 45 50 150 320
2 13 20.5 300 900 160 2 38 47 90 270 340
3 13 23 500 1,500 190 3 38 51 170 510 480
4 13 22.6 700 2,100 200 4 38 54 250 750 500
GS-16 1 16 22 150 450 180 GS-51 1 51 58.2 30 90 500
2 16 23.7 230 690 190 2 51 60.4 80 240 550
3 16 26.6 300 900 250 3 51 64 140 420 600
4 16 29 550 1,650 260 4 51 67 200 600 650
Other sizes of hose can be made upon your request

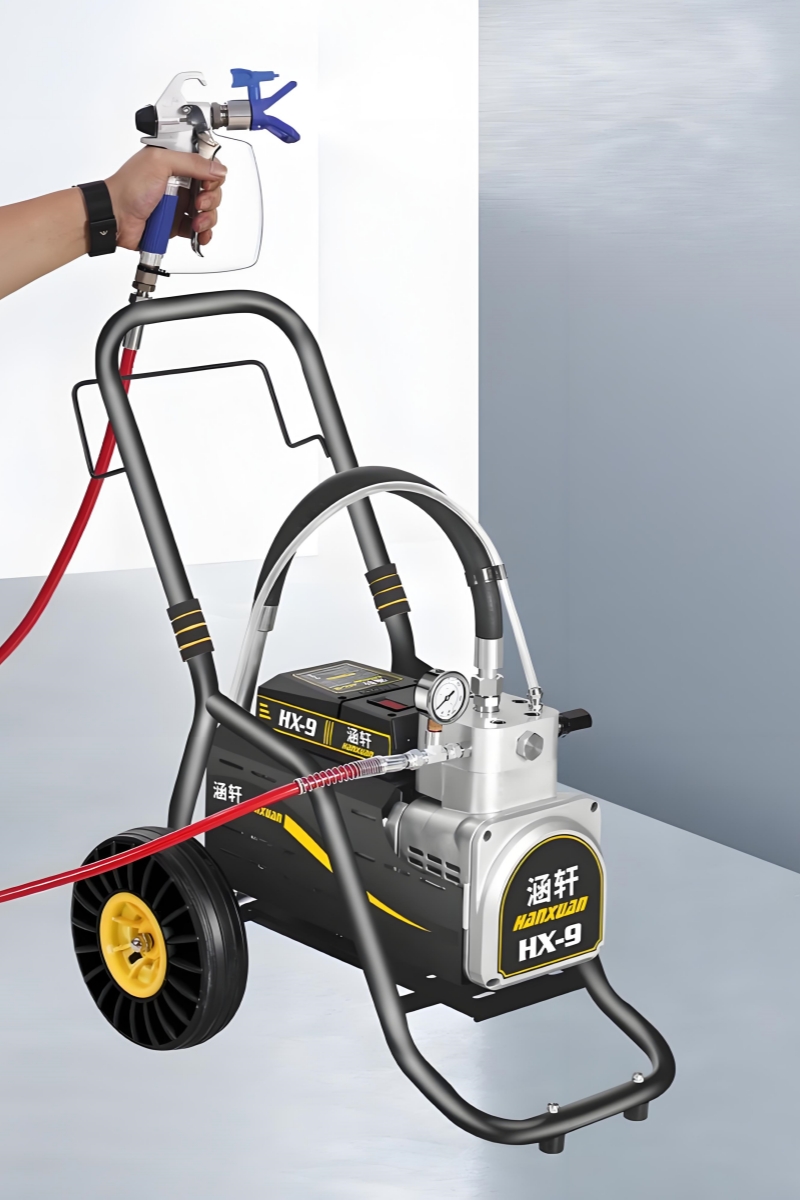

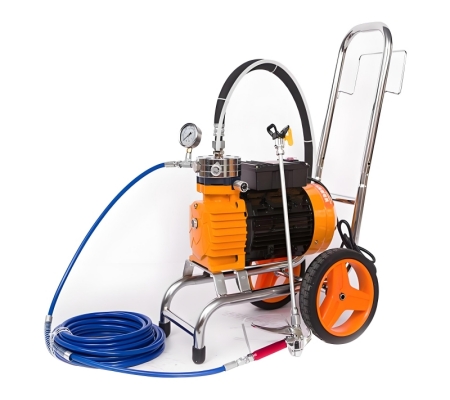

                                                  Airless paint sprayer hose                                                                 Airless Paint sprayer hose
