oil resistance,high pressure resistance,resistance to acid and alkali,wear resistance,smooth linning,high chemical resisitance,long life and so on.
Ultra High Pressure Thermoplastic Hose
Inner Tube (polyamide / Polyoxymethylene ),
Reinforcement (layers of high-tensile steel wire),
Outer Cover (Polyamide / polyurethane)
Color is red or blue or black,other colors upon request
Temperature:-40ºC---- +90ºC
Applications: It is used for many types of liquid, gas, powder, various of oil and chemicals, etc. It is best for water jetting, water blasting and high pressure hydraulic.

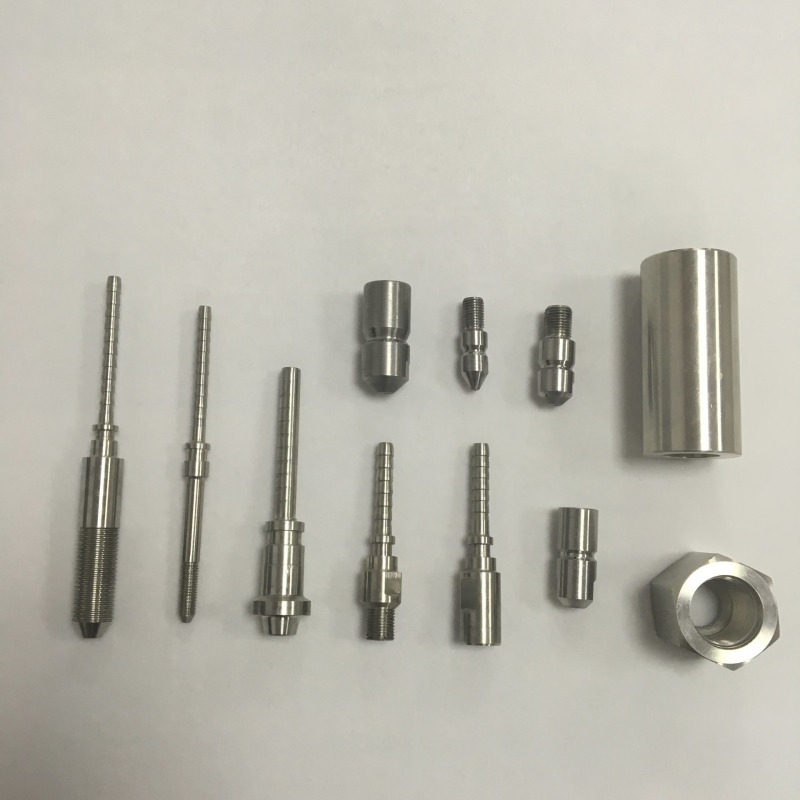

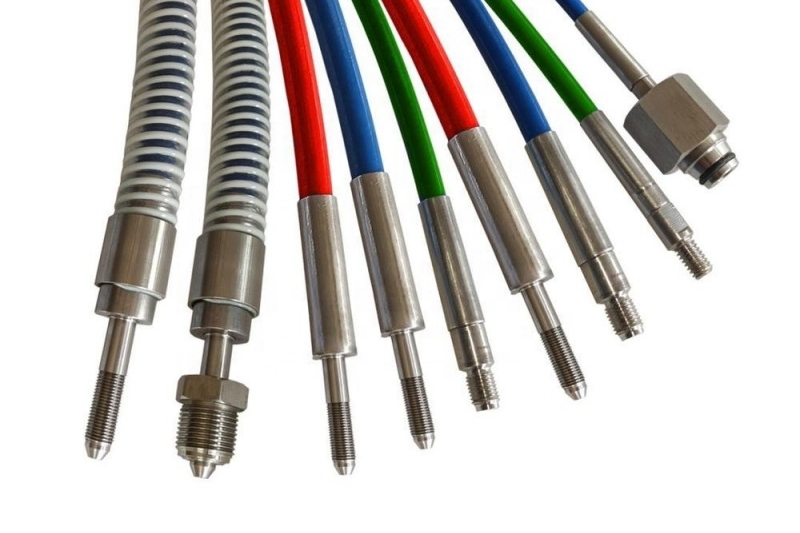

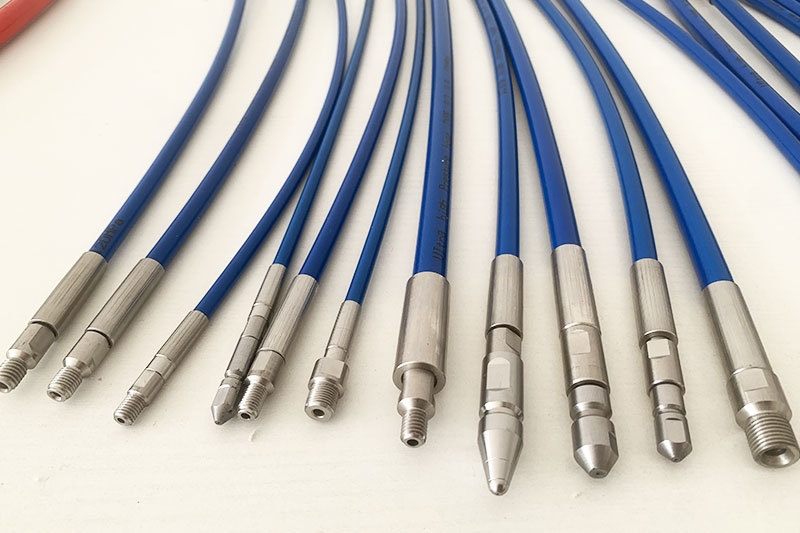

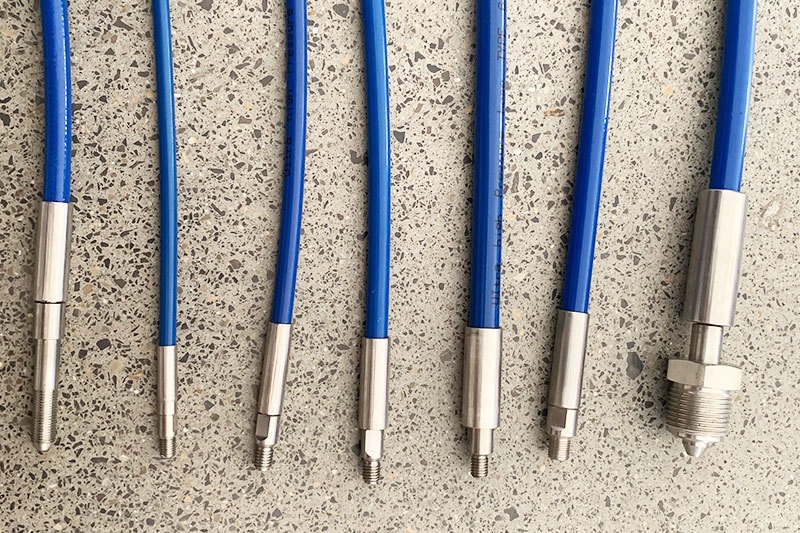

We can also supply assembly hose to you. The details of end fittings, please choose it from our catalogue or we manufacture it upon your request.
| Hose type | I.D(mm) | O.D(mm) | W.P(Mpa) | B.P(Mpa) | Bend Radius |
| 3/2SP | 3 | 8 | 120 | 300 | 95 |
| 3/4SP | 3 | 9.2 | 200 | 500 | 100 |
| 4/2SP | 4 | 10.8 | 120 | 300 | 105 |
| 4/4SP | 4 | 12.6 | 200 | 500 | 115 |
| 4/6SP | 4 | 14.4 | 260 | 650 | 130 |
| 4/8SP | 4 | 16.2 | 310 | 775 | 145 |
| 5/2SP | 5 | 12.2 | 120 | 300 | 115 |
| 5/4SP | 5 | 14 | 180 | 450 | 120 |
| 6/2SP | 6 | 13.6 | 110 | 275 | 125 |
| 6/4SP | 6 | 15.6 | 170 | 425 | 140 |
| 8/6SP | 8 | 20.2 | 220 | 550 | 195 |
| 8/8SP | 8 | 12.2 | 260 | 650 | 210 |
| 10/4SP | 10 | 21.4 | 160 | 400 | 200 |
| 10/6SP | 10 | 23.8 | 220 | 550 | 220 |
| 25/4SP | 25 | 39 | 60 | 150 | 400 |
We are committed to providing high-quality rubber and plastic hose products and services.
With a professional team, advanced technology, and exceptional customer service,
we create lasting value and help our customers achieve remarkable growth.
Hebei Biaohui Rubber& Plastic Products Co., Ltd. is a manufacturer and supplier of rubber hoses, plastic hoses, and rubber products. The main products include TPU layflat hoses, industrial hoses, material conveying hoses, silicone hoses, PTFE hoses, stainless steel metal hoses, and rubber plastic products.
Our company's products are characterized by high pressure resistance, high temperature resistance,wear resistance, strong flexibility, good pulse performance, and easy maintenance. They are widely used in fields such as coal, petrochemicals, metallurgy, mining, construction, water conservancy engineering, electricity, agriculture, machinery, electronics, textiles, etc.
All your issues will be resolved by the team, updated promptly, responded to quickly, and delivered quickly。
