Stretch resistant, twist resistant, heat-resistant oil hose.

Main Products

Hydraulic oil hose 150 °C

Heat-resistant oil hose is widely used in various industrial fields, especially in places where high temperature and high-pressure environments are required. For example, in the steel industry, it can be used to transport high-temperature oil media. In addition, the hose is also suitable for the chemical industry, petroleum transportation systems, and other industrial equipment that requires high temperature and oil resistance.

Hydraulic oil hose 150 °C

Hydraulic Oil Hose Structure：

Tube: oil resistant nitrile rubber。

Reinforcement: 1 or 2 layers steel wire braid
Cover: oil resistant nitrile rubber。

Oil Resistant Hydraulic Hose Working Temperature：-40°C to +150°C (-40°F to +302°F)

Hydraulic Oil Pipe Application：
The high temperature resistant high pressure hydraulic oil hose is designed for petroleum, fire-resistant hydraulic fluid。fuel, lubricant, gasoline, water and other industrial fluids
Hydraulic Fluid Hose Features:
●High temperature resistant range up to +150°C
●Excellent aging and abrasion resistant
●UV and ozone resistant

AE1R1AE,EN853,1SN TYPE ,BIUE, SINGER WIRE BRAID HOSE

Item Core	ID		OD		W.P		B.P		B.R		WG
Item Core	Mm	inch	Mm	Inch	Bar	Psi	Bar	Psi	Mm	In	Kg/m	Ibs/ft
R1-06	6.4	1/4	13.5	0.53	225	3250	900	13000	100	4	0.25	0.17
R1-10	9.5	3/8	17.5	0.69	215	3125	860	12500	125	5	0.37	0.25
R1-12	12.7	1/2	20.6	0.81	175	2550	700	10200	180	7	0.45	0.3
R1-16	16	5/8	23.9	0.95	140	2050	560	8200	205	8	0.54	0.36
R1-19	19.1	3/4	27.7	1.09	125	1800	500	7200	240	9.5	0.68	0.46
R1-25	25.4	1	35.8	1.41	90	1300	360	5200	300	12	0.98	0.66
R1-32	31.8	1-1/4	43.9	1.73	65	950	260	3800	420	16.5	1.26	0.85
R1-38	38.1	1-1-/2	50.6	1.99	50	725	200	2900	500	19.69	1.58	1.06
R1-51	50.8	2	64	2.52	40	580	160	2320	630	24.8	2.04	1.37

AE1R1AE,EN853,2SN TYPE ,BIUE, SINGER WIRE BRAID HOSE

Item Core	ID		OD		W.P		B.P		B.R		WG
Item Core	Mm	inch	Mm	Inch	Bar	Psi	Bar	Psi	Mm	In	Kg/m	Ibs/ft
R2-06	6.4	1/4	15.2	0.6	400	5800	1600	23200	100	4.02	0.4	0.27
R2-10	9.5	3/8	19.1	0.75	345	5000	1380	20000	125	4.92	0.6	0.39
R2-12	12.7	1/2	22.1	0.87	293	4250	1172	17000	180	7.09	0.68	0.39
R2-16	16	5/8	25.2	0.99	250	3650	1000	14600	205	8.07	0.8	0.54
R2-19	19.1	3/4	29.5	1.16	215	3125	860	12500	240	9.45	1	0.67
R2-25	25.4	1	37.9	1.49	175	2550	700	10200	300	11.81	1.44	0.97
R2-32	31.8	1-1/4	48.8	1.92	155	2250	620	9000	420	16.54	2.39	1.6
R2-38	38.1	1-1/2	54.6	2.15	125	1800	500	7200	500	19.68	2.6	1.74
R2-51	50.8	2	67.8	2.67	105	1525	420	6100	630	24.8	3.38	2.27

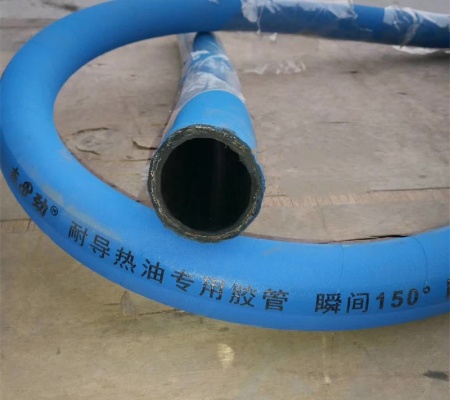

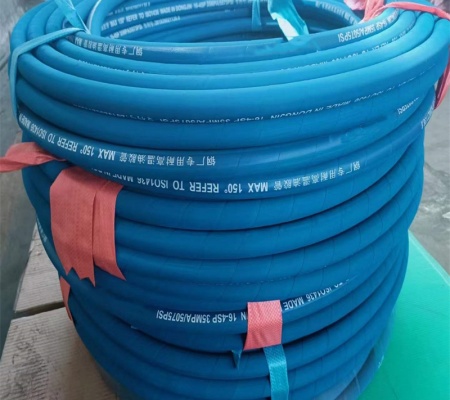

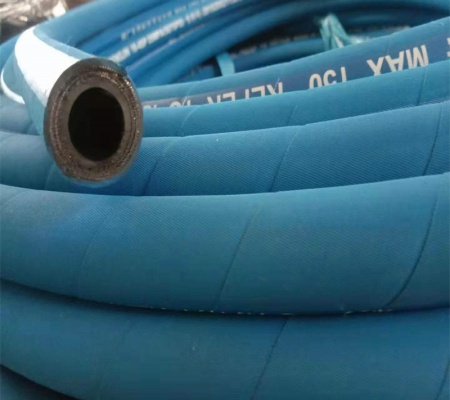

Heat resistant oil rubber hose Steel plant specific hot oil conveying hose 150 ° C
