Steel Wire Braided Steam Hose

Steam hose used for conveying high temperature, high pressure steam or hot water, to ensure high temperature transfer or heat transfer.

Steel Wire Braided Steam Hose

Our factory has rich experience in manufacturing varies of steam hose, such as single wire braid steam hose, double wire braids steam hose etc.
It is used for the conveyance of 165 °C ~ 220 °C saturated steam or superheated water. It finds applications in steam cleaning, steam hammer, vulcanizing machines and injection molding machines and pressing equipment.
Features: The inside and outside layers of hose are made by high quality heat resistance of synthetic tube and the hose body is soft, lightweight, flexible and high heat resistant characteristics.

Steel wire braided steam hose technical performance indicators:

W/B Hose I.D Hose O.D Working Pressure Burst Pressure Minimum Bend Radius Length
DN inch mm MPa psi MPa psi mm meters
1W 10 3/8 21.5 1.0 150 4.0 570 130 20/ 50
13 1/2 24.5 1.0 150 4.0 570 180 20/ 50
16 5/8 27.5 1.0 150 4.0 570 205 20/ 50
19 3/4 30.5 1.0 150 4.0 570 240 20/ 50
22 7/8 33.5 1.0 150 4.0 570 280 20/ 50
25 1 37.0 1.0 150 4.0 570 300 20/ 50
32 1 1/4 44.0 1.0 150 4.0 570 420 20/ 40
38 1 1/2 50.5 1.0 150 4.0 570 500 20/ 40
45 1 3/4 57.5 1.0 150 4.0 570 500 20/ 40
51 2 63.5 1.0 150 4.0 570 630 20/ 40
64 2 1/2 77.5 1.0 150 4.0 570 700 20/ 40
2W 10 3/8 23.0 2.0 300 6.0 860 130 20/ 50
13 1/2 26.0 2.0 300 6.0 860 180 20/ 50
16 5/8 29.0 2.0 300 6.0 860 205 20/ 50
19 3/4 32.0 2.0 300 6.0 860 240 20/ 50
22 7/8 35.0 2.0 300 6.0 860 280 20/ 50
25 1 38.5 2.0 300 6.0 860 300 20/ 50
32 1 1/4 45.5 2.0 300 6.0 860 420 20/ 40
38 1 1/2 52.0 2.0 300 6.0 860 500 20/ 40
45 1 3/4 59.0 2.0 300 6.0 860 500 20/ 40
51 2 65.0 2.0 300 6.0 860 630 20/ 40
64 2 1/2 79.0 2.0 300 6.0 860 700 20/ 40

Note: The above products are in accordance with HG/T3036-99 standard and fixed length is 20 meters. The internal diameter of 25 or less (specifications: 6, 8, 10, 13, 16, 19, 25) can be customized according to the requirements to reach about 100 meters.
Steel wire reinforced layer can add layers. The superheated water pressure can be designed more than 20MPa.

Category: Class I - the rubber of outer layer is not resistant to oil Class Ⅱ- the rubber of outer layer is resistant to oil.

Model:

  1. Type 1 - scheduled for a maximum working steam pressure is 0.3Mpa (3bar), corresponding steam temperature of 144 °C
  2. Type 2 - scheduled for the maximum working steam pressure 0.6Mpa (3bar), corresponding steam temperature of 165 °C
  3. Type 3 - scheduled for maximum working steam pressure is 1.0Mpa (3bar), corresponding steam temperature of 184 °C
  4. Type 4 - scheduled for maximum working steam pressure is 1.6Mpa (3bar), corresponding steam temperature of 204 °C
  5. Type 5 - scheduled for maximum working steam pressure 1.6Mpa (3bar), corresponding steam temperature of 204 °C, and it can be continuously used.

Structure: the rubber hose consists of resistance to pressurized steam and aging of inner layer, middle layer, one or more layers of high tensile steel wire braid or spiral layer and the outer layer.

Usage: used for conveying high temperature, high pressure steam or hot water, to ensure high temperature transfer or heat transfer.
Operating Temperature: 140 ℃ - 204 ℃

Working pressure: 0.3Mpa (3bar) -1.6Mpa (16bar)Safety pressure = working pressure × 10

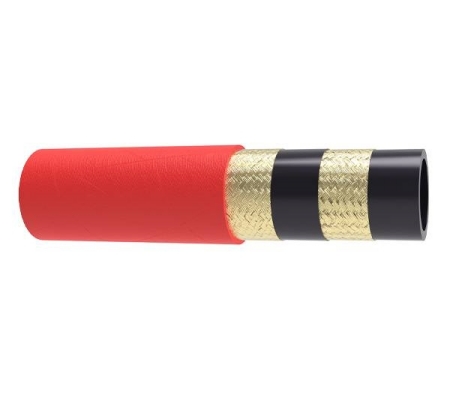

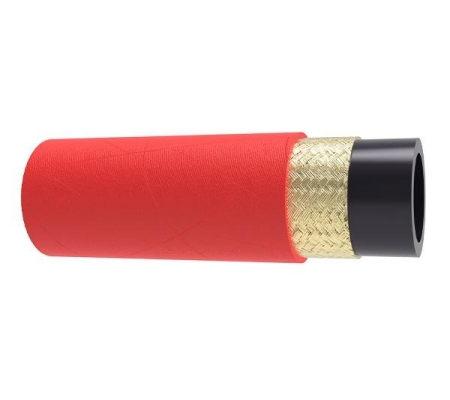

                             Single  wire steam hose                                                         Double wire steam hose
