Gravel Suction and Discharge Hose

Dredge suction & discharge hose can be used for gravel transport ship to deliver gravel in many places, and this is the so-called gravel suction & discharge hose. Its outstanding feature is that it has excellent abrasion resistance, so it works well in delivering gravel which is highly abrasive. Gravel suction & discharge hose is composed of three parts: tube, reinforcement and cover. Tube is made from synthetic rubber (NR, SBR or BR), making hose resistant to abrasion and corrosion. Reinforcement is made from high tensile spiral steel wires, making hose resistant to kink and fatigue. Besides, the high tensile reinforcement makes hose have solid structure and bear high working pressure. Cover is made from high quality synthetic rubber (NR, SBR or BR), making hose resistant to abrasion, corrosion, weather, ozone, aging and heat. The hose can be connected to pipeline tightly by flanges. And it has excellent flexibility.

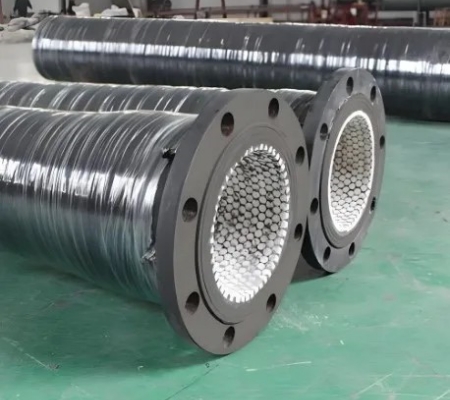

Gravel Suction and Discharge Hose

The details of gravel suction & discharge hose:

  • Structure: composed of three parts: tube, reinforcement and cover.
    • Tube: synthetic rubber, NR, SBR or BR, making hose resistant to abrasion, corrosion and seawater.
    • Reinforcement: multiple layers of high tensile spiral steel wires, making hose have solid structure and resistant to kink and high pressure.
    • Cover: synthetic rubber, NR, SBR or BR, making hose resistant to abrasion, corrosion, seawater, heat, weather, ozone and aging.
  • Working temperature: 20 °C to 80 °C.

The specification of gravel suction & discharge hose
Hose code ID OD Working pressure Burst pressure Vacuum pressure Length
inch mm inch mm bar MPa bar MPa bar MPa m
GSDH-01 6 152 7-1/4 184 12 1.2 24 2.4 0.8 80 20
GSDH-02 8 203 9-1/5 233 24 2.4 24 2.4 0.8 80 20
GSDH-03 10 254 11-1/5 284 10 1 20 2 0.8 80 10
GSDH-04 12 304 13-2/5 340 10 1 20 2 0.8 80 6 - 10
GSDH-05 14 355 15-2/5 390 10 1 20 2 0.8 80 6 - 10
GSDH-06 18 457 19-1/5 487 7 0.7 15 1.5 0.8 80 6 - 10
GSDH-07 22 560 23-3/5 600 7 0.7 15 1.5 0.8 80 6 - 10
GSDH-08 24 635 25-3/5 650 7 0.7 15 1.5 0.8 80 6 - 10
GSDH-09 28 711 29-3/5 752 7 0.7 15 1.5 0.8 80 6 - 10
GSDH-10 32 813 33-1/2 850 5 0.5 10 1 0.8 80 6 - 10
GSDH-11 40 1016 41-1/2 1054 5 0.5 10 1 0.8 80 6
GSDH-12 48 1219 49-1/5 1250 5 0.5 10 1 0.8 80 6
GSDH-13 52 1320 53-1/5 1350 5 0.5 10 1 0.8 80 6
We can manufacture gravel suction & discharge hose according to customers' requirements, such as material, length, inner diameter, outside diameter.
