Heavy Duty Lay Flat Hose

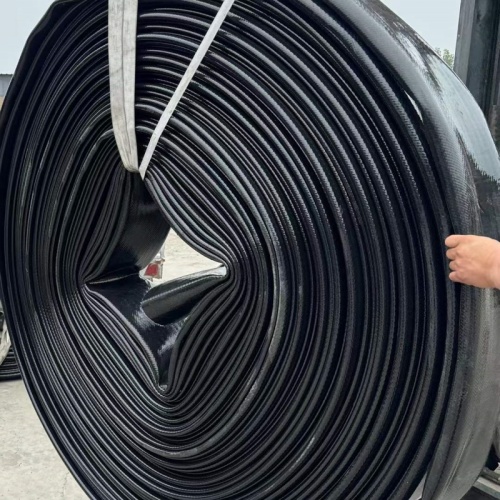

TPU Layflat Hose is made from extruded thermoplastic polyester based polyurethane (TPU) with excellent wear & tear properties. It’s reinforced with circular woven filament polyester yarn.

It is also resistant to many chemicals and its superior construction makes it light in weight and permits it to be made in very long length even in larger diameters. The interlocked reinforcement weaves ensure the extension in hose length is minimized when the hose is pulled or pressurized – which also keeps “snaking” of the hose to a minimum.

Construction
Cover and liner: High quality TPU
Reinforcement: High tenacity synthetic yarn
Technical Parameters
Color: Black or as required
Size: 16 inch(DN400)
Length: 200m(660ft) or as required
Temperature: -50°C～+80°C(-60°F to 176°F )
Features
High pressure, abrasion resistant, extremely tough, oil and chemicals resistance, fast deployment and retrieval, excellent flow rates, long service life
Application

Long-distance water supply in fire fighting, emergency water removal during floods, industrial large volume water discharge, irrigation supply and frac solution

Specifition：


ID WP BP Measurement L
inch mm mpa psi mpa psi m³ m
2 51 1 145 3 435 0.282 200
2 51 1.6 232 4.8 696 0.287 200
2.1/2 65 1 145 3 435 0.399 200
2.1/2 65 1.6 232 4.8 696 0.402 200
3 76 1 145 3 435 0.462 200
3 76 1.6 232 4.8 696 0.471 200
3.1/6 80 1.6 232 4.8 696 0.486 200
3.1/6 80 2.8 406 8.4 1218 0.486 200
4 102 1 145 3 435 0.69 200
4 102 1.2 145 3.6 435 0.693 200
4 102 1.6 232 4.8 696 0.713 200
4 102 2 290 6 870 0.794 200
4 102 2.8 406 8.4 1218 0.88 200
5 125 1 145 3 435 0.842 200
5 125 1.6 232 4.8 696 0.939 200
6 152 1 145 3 435 1.137 200
6 152 1.4 203 4.2 609 1.137 200
6 152 1.6 232 4.8 696 1.141 200
6 152 2 290 6 870 1.144 200
6 152 2.5 362 7.5 1086 1.411 200
6 152 2.8 406 8.4 1218 1.42 200
8 200 0.8 116 2.4 348 1.444 200
8 200 1 145 3 435 1.444 200
8 200 1.2 174 3.6 522 1.48 200
8 200 1.4 203 4.2 609 1.469 200
8 200 1.6 232 4.8 696 1.48 200
8 200 2 290 6 870 1.48 200
10 250 1 145 3 435 2.032 200
10 250 1.2 174 3.6 522 2032 200
10 250 1.4 203 4.2 609 2.036 200
10 250 1.6 232 4.8 696 2.478 200
12 300 0.8 116 2.4 348 2.424 200
12 300 1 145 3 435 2.424 200
12 300 1.2 174 3.6 522 2.952 200
12 300 1.4 203 4.2 609 2.957 200
14 350 0.8 116 2.4 348 3.422 200
14 350 1 145 3 435 3.436 200
16 400 0.8 116 2.4 348 3.906 200
16 400 1 145 2.4 348 3.920 200

Size，working pressure and wall thickness can be customized as required。
