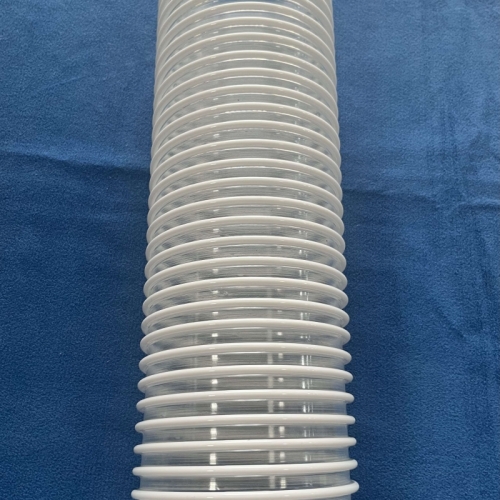

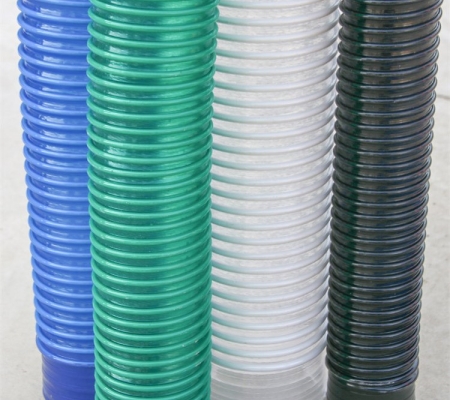

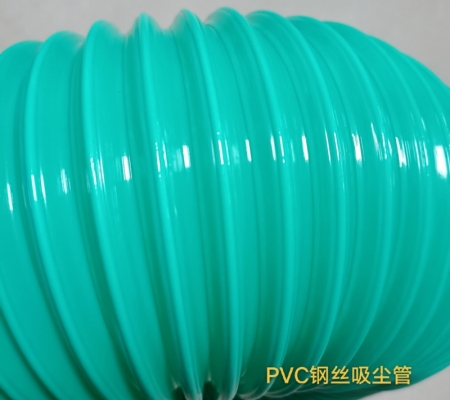

PVC Steel Wire Helix Duct Hose

PVC steel wire duct hose provide great flexibility with tight bending characteristics and offer good chemical and moisture resistance and the hose exhibits excellent compressible.

PVC Steel Wire Helix Duct Hose

Construction:

Wall: Soft PVC
Spiral: Steel wire PVC coated

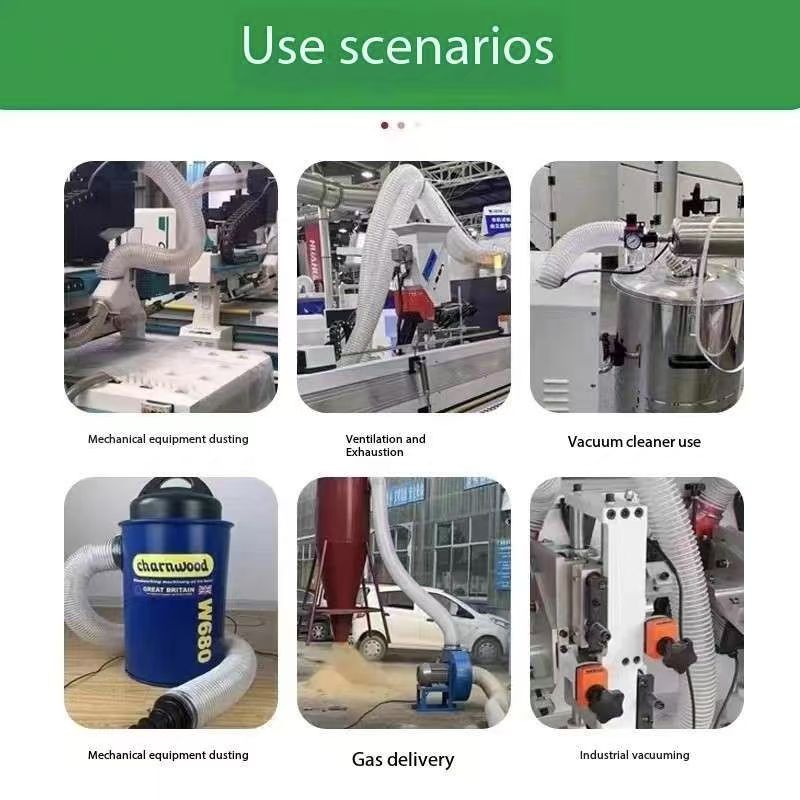

Application:

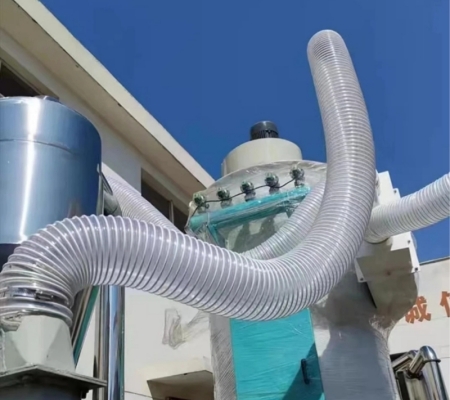

Especially ideal for ventilation , industrial vacuum
cleaner,and granulate conveying systems.
As suction and transport hose suitable for below substance:
Gaseous medias such as vapors and smoke Liquid medias
Small granules such as dusts, powders and etc.


Characteristic:

1.Highly flexible with low weight
2.Extremely compressible
3.Could be static electricity conductive by grounding the steel wire
4.Smooth interior
5.Highly transparent wall

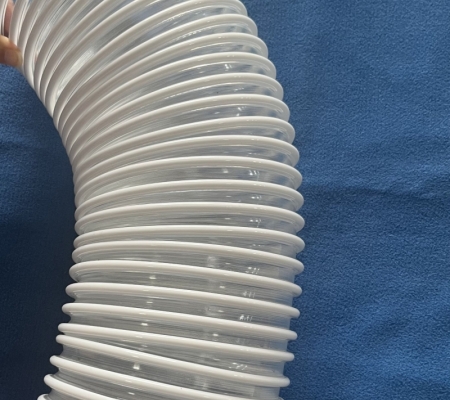

6.Small bending radius
7.Comply to RoHS


Temperature: -20ºC (-70 ºF ) to 70ºC(+150 ºF)



Item code I.D Thickness Bending Radius W.P Vacuum Pressure L
mm light duty(mm) medium duty(mm) mm light duty(bar) medium duty(bar) light duty(bar) medium duty(bar) m
PSDH025 25 0.4 0.6 38 0.5 1.5 0.25 0.45 10
PSDH032 32 0.4 0.6 46 0.45 1.5 0.19 0.43 10
PSDH038 38 0.4 0.6 53 0.4 1.4 0.18 0.4 10
PSDH040 40 0.4 0.6 55 0.4 1.4 0.17 0.4 10
PSDH051 51 0.4 0.6 67 0.35 1.3 0.15 0.3 10
PSDH060 60 0.4 0.6 78 0.35 1.2 0.14 0.3 10
PSDH063 63 0.4 0.6 84 0.3 1.2 0.13 0.3 10
PSDH076 76 0.4 0.6 89 0.3 0.9 0.12 0.25 10
PSDH080 80 0.4 0.6 105 0.25 0.9 0.1 0.25 10
PSDH090 90 0.4 0.6 118 0.23 0.8 0.09 0.2 10
PSDH102 102 0.4 0.6 165 0.2 0.7 0.08 0.2 10
PSDH127 127 0.4 0.6 202 0.15 0.5 0.06 0.15 10
PSDH140 140 0.4 0.6 222 0.1 0.4 0.06 0.13 10
PSDH152 152 0.4 0.6 240 0.08 0.3 0.05 0.1 10
PSDH159 159 0.4 0.6 250 0.07 0.28 0.05 0.09 10
PSDH178 178 0.4 0.6 279 0.06 0.26 0.04 0.08 10
PSDH203 203 0.4 0.6 316 0.05 0.23 0.03 0.08 10
PSDH254 254 0.4 0.6 394 0.04 0.2 0.03 0.07 10
PSDH305 305 0.4 0.6 472 0.03 0.16 0.02 0.06
