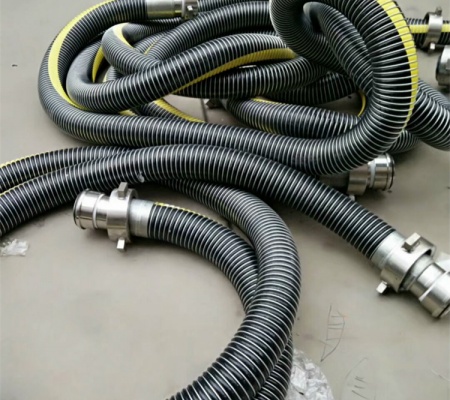

The structure of vapor recovery composite

After using petroleum composite hose for transferring petroleum products, it is necessary to handle the vapor. Vapor recovery composite hose is suitable for petroleum and petrochemical vapor recovery systems. It’s designed of lightweight, flexible, as well as easy to handle in the applications of ship to shore, bottom loading and tank truck.

The structure of vapor recovery composite hose:

Vapor recovery composite hose is composed of three parts: inner wire, liner and outer wire.

• Inner wire: galvanized steel and 316 stainless steel.
• Outer wire: high tensile galvanized steel or 316L stainless steel.
• Liner: combination of multiple piles of polypropylene films and polyester vapor barriers.

The details of vapor recovery composite hose:

• Temperature range: -40°C to +150°C.
• Inner diameter: 1", 1.5", 2", 3", 4", 6", 8" and 10".
• Outside diameter: 1.5", 2", 2.5", 4", 5", 7", 9.5" and 11.5".
• Bend radius: 1", 1.8", 3", 4", 5.5", 7", 8" and 11".
• Working pressure: 150psi.
• Burst pressure: 600psi.
• Length: 15m.

• The specification of vapor recovery composite hose

  Hose code	ID	OD	Bend radius	Working pressure	Burst pressure	Weight	Length
  	inch	inch	inch	psi	psi	lb/ft	m
  VRCH-01	1	1.5	1	150	600	0.5	15
  VRCH-02	1.5	2	1.8	150	600	0.7	15
  VRCH-03	2	2.5	3	150	600	1.1	15
  VRCH-04	3	4	4	150	600	1.6	15
  VRCH-05	4	5	5.5	150	600	2.3	15
  VRCH-06	6	7	7	150	600	5.6	15
  VRCH-07	8	9.5	8	150	600	8.4	15
  VRCH-08	10	11.5	11	150	600	10.7	15

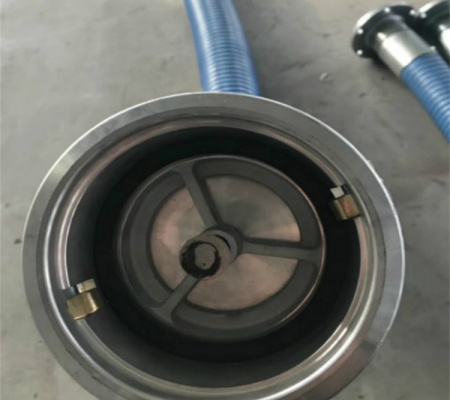

  Couplings are available in different types and sizes according to unique requirements of customers. Please feel free to contact us. The common standard couplings are: carbon steel NPT male, carbon steel ferrule and seal; stainless steel NPT male, stainless steel ferrule and seal; stainless steel NPT male, carbon steel ferrule and seal; polypropylene NPT male, stainless steel ferrule and seal; and polypropylene NPT male, carbon steel ferrule and seal.

  Application of vapor recovery composite hose:

  • Vapor recovery composite hose is used to transfer hydrocarbon vapors.
  • It is generally used in petroleum industry for the vapor recovery systems.

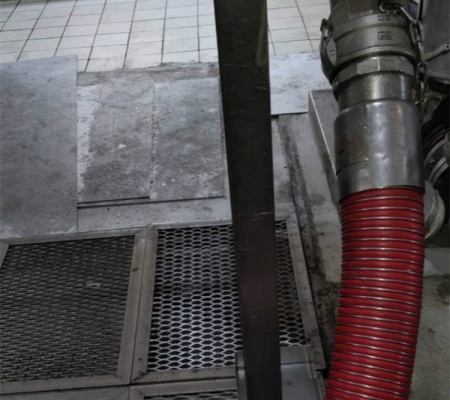

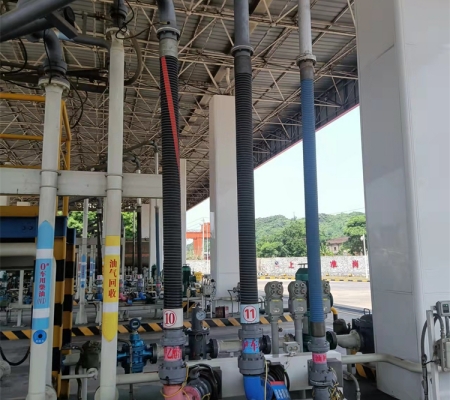

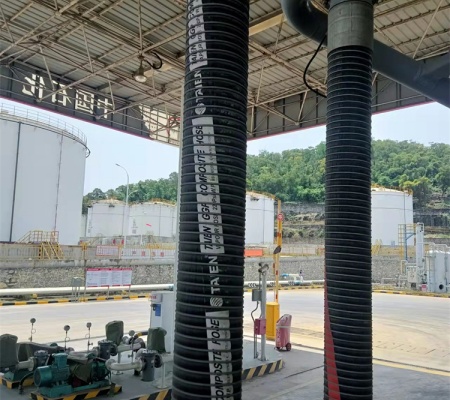

  • It is used for ship to shore, bottom loading and tank truck.




•

•
