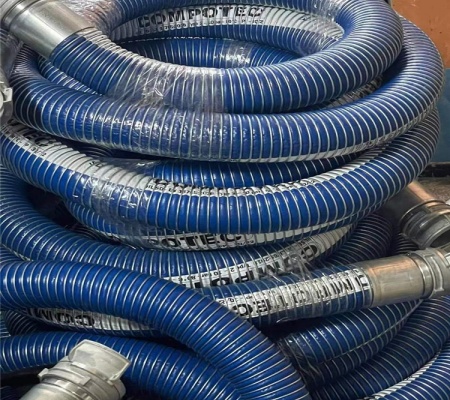

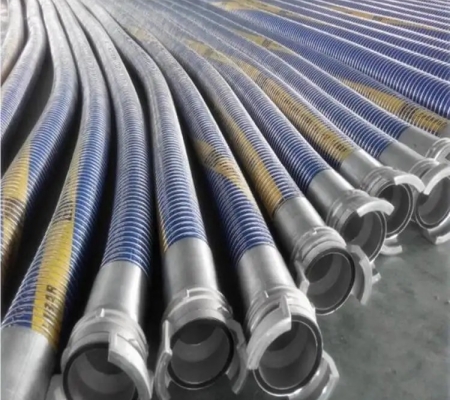

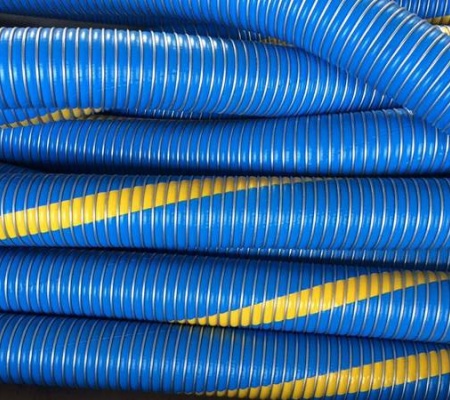

The structure of biofuel and biodiesel composite hose:

Biofuel and biodiesel composite hose is composed of five parts: inner helix wire, outer helix wire, liner, carcass and cover.

• Inner helix wire: nylon coated steel, aluminum or SS316.
• Outer helix wire: high tensile galvanized steel or stainless steel.
• Liner: polyamide or nylon.
• Carcass: multiple layers of polypropylene fabrics and films.
• Cover: abrasion resistant PVC fabrics.

• Features of biofuel and biodiesel composite hose:

  • Flexible and soft, can bend freely.
  • Lightweight, easy to handle.
  • Resistant to abrasion, weather, ozone and UV rays.
  • Resistant to corrosion and chemical fluids.
  • Supplying easy multiple connections and disconnections and excellent durability due to the unique construction.

  The details of biofuel and biodiesel composite hose:

  • Temperature range: -20°C to +100°C.
  • Inner diameter: 25mm, 38mm, 50mm, 65mm, 75mm, 100mm, 150mm, 200mm and 250mm.
  • Outside diameter: 32mm, 50mm, 61mm, 76mm, 88mm, 112mm, 175mm, 240mm and 290mm.
  • Bend radius: 100mm, 140mm, 180mm, 205mm, 280mm, 405mm, 510mm, 760mm and 915mm.
  • Working pressure: 14 bar.
  • Max working pressure: 250psi.
  • Length: 15m.

  • The specification of biofuel and biodiesel composite hose

    Hose code	ID	OD	Bend radius	Working pressure	Weight	Length
    	mm	mm	mm	bar	kg/m	m
    BBCH-01	25	32	100	14	1.00	15
    BBCH-02	38	50	140	14	1.40	15
    BBCH-03	50	61	180	14	1.90	15
    BBCH-04	65	76	205	14	2.50	15
    BBCH-05	75	88	280	14	3.00	15
    BBCH-06	100	112	405	14	6.40	15
    BBCH-07	150	175	510	14	10.70	15
    BBCH-08	200	240	760	14	15.00	15
    BBCH-09	250	290	915	14	20.50	15

    Application of biofuel and biodiesel composite hose:

    • It is suitable for all grades biodiesel, ethanol, methanol and propanol.
    • It is used to transfer alternative fuels in modern society.
