Light oil Composite Hose

Light oil composite hose is suitable for the delivery of fuel oil liquids. It is mainly used as the soft connection of liquid oil pipeline transmission in tanker, exchange station, loading and unloading platform. It can be used to deliver various oils in normal conditions.

Light oil Composite Hose

   Light oil composite hose is suitable for the delivery of fuel oil liquids. It is mainly used as the soft connection of liquid oil pipeline transmission in tanker, exchange station, loading and unloading platform. It can be used to deliver various oils in normal conditions.

Features:

   Soft, can bend freely.

   Lightweight, easy to operate.

   Resistant to high pressure.

   Resistant to high temperature.

   Resistant to corrosion, oil and acids & alkalis.

Advantage of light oil composite hose:

   The main body of light oil composite hose is made from multiple layers of functional polymer films and synthetic fabric reinforcement.

   The liner plays the key role on the hose quality. It is usually made from dozens of functional materials according to transmission media property, such as modified Teflon nylon, crosslinking polyethylene and so on. Proprietary technology makes the hose resistant to fatigue, corrosion caused by chemical fluids excellently.



  • Its chemical liquid permeability is close to zero and its safety performance is super high.
  • The details of light oil composite hose:
  • Structure: light oil composite hose is composed of three parts: inner helix wire, liner and outer helix wire.
    • Inner wire: stainless steel, hot dip galvanized steel, aluminum alloys, polypropylene or Teflon covered steel wires based on the delivery media.
    • Outer wire: hot dip galvanized steel wires or stainless steel wires.
    • Liner: Teflon nylon and crosslinking polyethylene.
  • Temperature range: -40°C to +200°C.
  • Anti-collision strength: 0.6MPa - 5.5MPa.
  • Thickness: 7mm - 12mm.
  • Friction coefficient: 0.5.
  • Inner diameter: 1", 1.5", 2", 2.5", 3", 4" and 6".
  • Outside diameter: 38mm, 50mm, 64mm, 76mm, 89mm, 127mm and 178mm.
  • Working pressure: 10 bar (145psi).
  • Burst pressure: 40 bar (580psi).
  • Max length: 30m

The specification of light oil composite hose
Hose code ID OD Working pressure Burst pressure Bend radius Max length weight
inch mm mm bar psi bar psi mm m kg/m
LOCH-01 1 25 38 10 145 40 580 65 30 0.75
LOCH-02 1.5 38 50 10 145 40 580 100 30 1.25
LOCH-03 2 50 64 10 145 40 580 180 30 1.7
LOCH-04 2.5 64 76 10 145 40 580 220 30 2.8
LOCH-05 3 76 89 10 145 40 580 280 30 3.0
LOCH-06 4 102 127 10 145 40 580 340 30 5.38
LOCH-07 6 152 178 10 145 40 580 710 30 10.5

Application of light oil composite hose:

  • Light oil composite hose is suitable for fuel oils delivery.

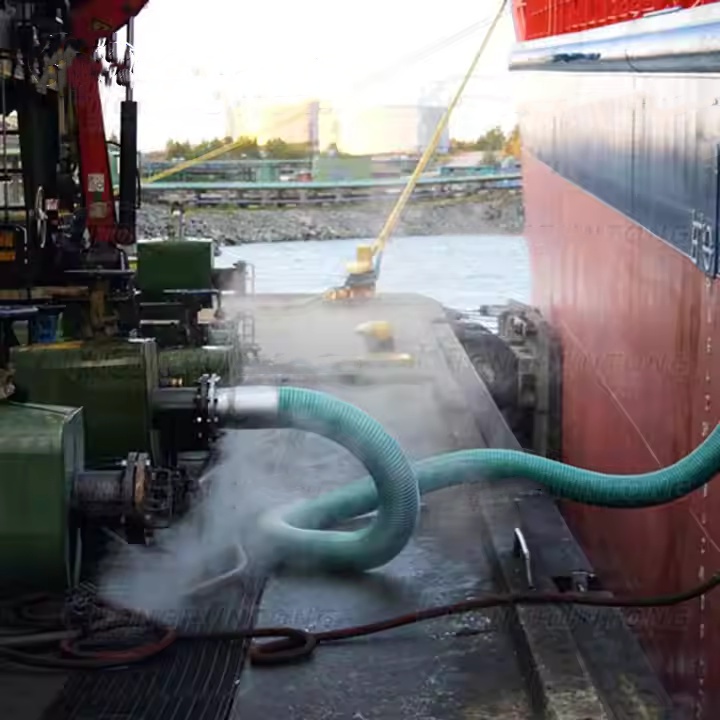

  • It is used as soft connection of liquid oil pipeline transmission in tanker, railcar, exchange station, loading and unloading platform.
  • It is used to deliver various oils in normal conditions.
