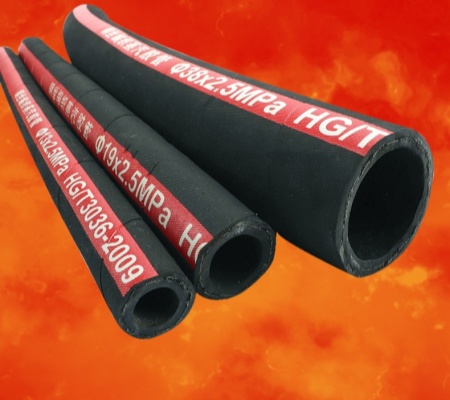

EPDM Steam Hose

Steam hose saturated and overheat steam. Used in the chemical and petrol, industrial clean, ship building, lumber and pulp process.

EPDM Steam Hose

Prduct Name：EPDM Steam Hose

Working Pressure;150/250psi

Size&Colour：Red colour and multiple sizes

Temperatur：Up to 220°C（+446°F)

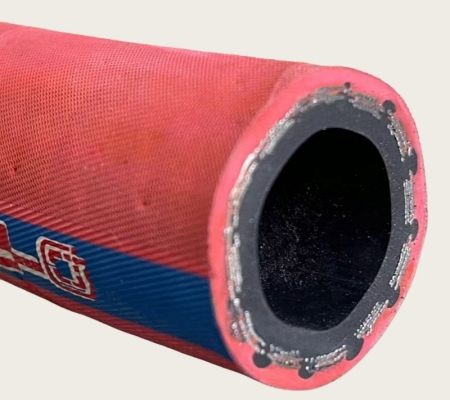

Construction:
Tube: Synthetic rubber EPDM
Reinforcement: high tensile wire braiding
Cover:Red or blue, pin pricked smooth (wrapped finish) ,EPDM rubber


Application:

The steam hose is used for the saturated steam in chemical industry, petroleum industry, shipbuilding industry

Characteristics:
1.Excellent resistance to high temperature
2.Weathering and ozoen resistance
3.High abrasion resistant cover
4.Anti aging,long service life

Item code I.D O.D W.P B.P Bend R Wt
mm inch mm bar psi bar psi mm kg/m
010 10 3/8'' 21 17 250 170 2500 50 0.45
012 12 1/2'' 25 17 250 170 2500 60 0.53
016 16 5/8'' 28 17 250 170 2500 70 0.6
019 19 3/4'' 32 17 250 170 2500 80 0.68
025 25 1'' 39 17 250 170 2500 110 0.9
032 32 1 1/4'' 46 17 250 170 2500 150 1.3
038 38 1 1/2'' 54 17 250 170 2500 180 1.6
051 51 2'' 67 17 250 170 2500 245 2.2
064 64 2 1/2'' 83 17 250 170 2500 300 3.8
076 76 3'' 95 17 250 170 2500 400 4.6
089 89 3 1/2'' 110 17 250 170 2500 500 5.2
102 102 4'' 124 17 250 170 2500 600 6.5

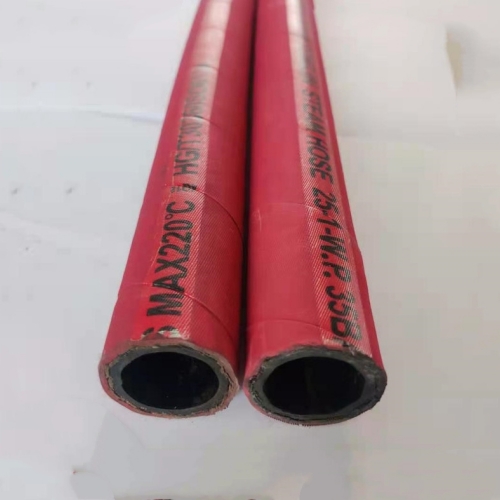

                                       Red steel wire braided steam hose                                                              Black steel wire braided steam hose



                            EPDM Rubber Steam Hose                                                                                         EPDM Rubber Steam Hose
