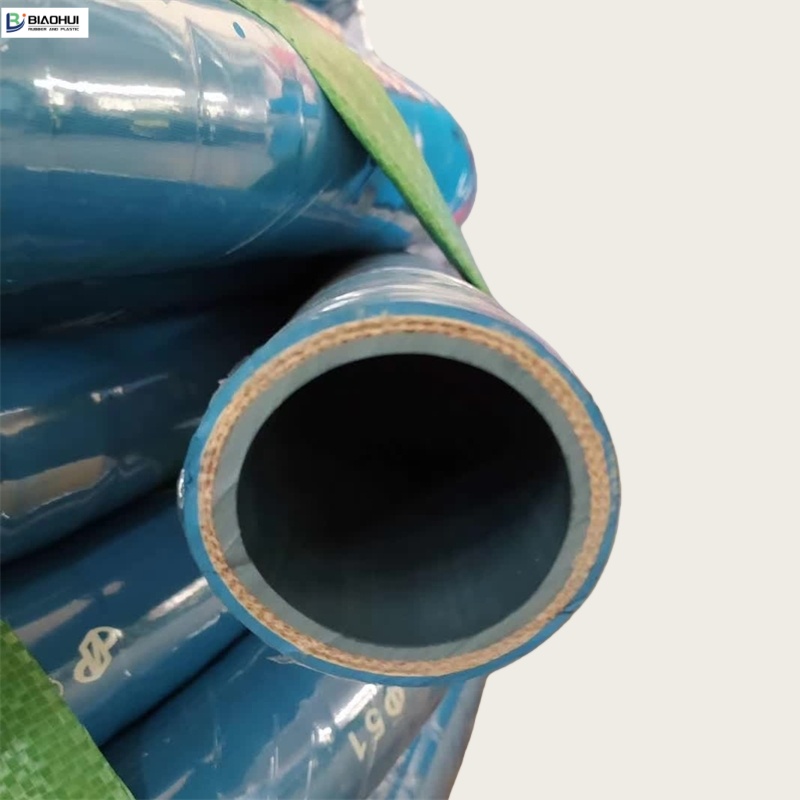

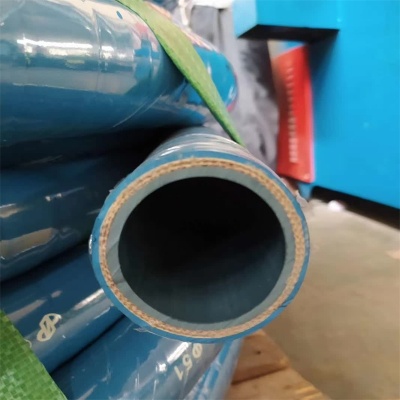

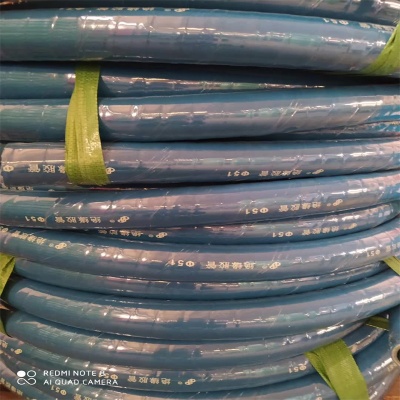

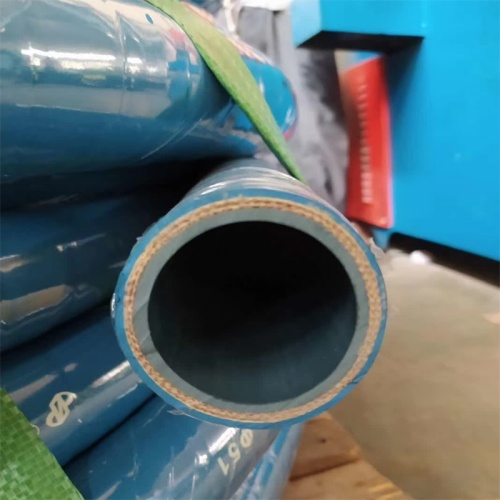

High Insulation Hose for Medium Frequency Induction Furnace



it is suitable for conveying purified water through cable in induction electric furnace water cooling system with voltage 6KV. High insulation, wear-resisting and anti-aging.

High Insulation Hose for Medium Frequency Induction Furnace
Applications:
it is suitable for conveying purified water through cable in induction electric furnace water cooling system with voltage 6KV. High insulation, wear-resisting and anti-aging.
Construction:
Tube: black smooth high insulation EPDM synthetic rubber.
Reinforcement: high strength polyester fiber.
Cover: green or black, high insulation EPDM synthetic rubber. Smooth for ID≤1″,  fabric impression for ID＞1”.
Electrical resistance: high insulation, excellent low leakage current. The leakage current was less than 20 Micro Amp at 6KV DC/AC voltage.

Temperature range: -40 °C +120 °C

Core ID OD B.R W.P B.P Weigh length
inch mm mm mm PSI PSI kg/m m
JY06013 1/2″ 12.7 21 100 200 800 0.31 100
JY06016 5/8″ 15.9 24 120 200 800 0.35 60
JY06019 3/4″ 19.0 28 150 200 800 0.46 60
JY06022 7/8″ 22.2 32.2 170 200 800 0.58 60
JY06025 1″ 25.4 36.8 200 200 800 0.76 60
JY06032 1-1/4″ 31.8 44.6 250 200 800 1.1 40
JY06038 1-1/2″ 38.1 52 300 200 800 1.38 40
JY06042 42mm 42.0 56 336 200 800 1.46 40
JY06045 45mm 44.5 59 360 200 800 1.6 40
JY06050 2″ 50.8 66 400 200 800 1.9 40
JY06063 2-1/2″ 63.5 79.5 500 200 800 2.5 40
JY06076 3″ 76.2 92.2 600 150 800 3.2 40
