Wire Reinforced Air Hose

For heavy duty air supply where high temperature is required. For use with high-temperature compressors without an after-cooler, mining, quarries, con-struction,industrial air placement, sandblasting and heavy duty equipment.

Wire Reinforced Air Hose

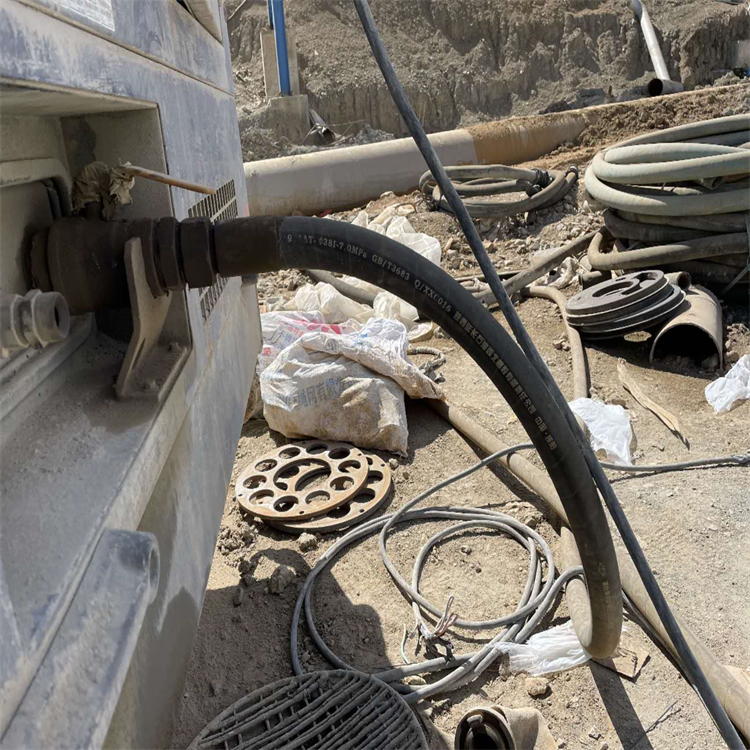

Steel wire reinforced air hoses are found in the most severe applications where high working pressure, long service life and high safety factor are necessary. Steel wire high pressure air hoses are often used in open-pit or underground mining, construction and rock quarries. Hose cover is pin-pricked for releasing trapped air or gas.
Construction:
Tube: NR & SBR synthetic rubber, black color.
Reinforcement: High tensile steel wire braiding or spiral
Cover: NR & SBR synthetic rubber, black, yellow,grey available
Application:
For heavy duty air supply where high temperature is required. For use with high-temperature compressors without an after-cooler, mining, quarries, con-struction,industrial air placement, sandblasting and heavy duty equipment.
Characteristics:
Oil mist resistant tube High working pressure Weather and ozone resistant Excellent abrasion resistance

Temperature:-30℃(-22℉)to 80℃（+176℉）

Code	ID		OD		W.P		B.P		Lengh
	Inch	mm	mm	bar	psi	bar	psi	m	ft
012	1/2"	12.7	23	42	600	126	1800	30.5	100
019	3/4"	19.1	30	42	600	126	1800	30.5	100
025	1"	25.4	37	42	600	126	1800	30.5	100
032	1-1/4"	31.8	46	42	600	126	1800	30.5	100
038	1-1/2"	38.1	52	42	600	126	1800	30.5	100
050	2"	50.8	68	42	600	126	1800	30.5	100
064	2-1/2"	63.5	80	42	600	126	1800	30.5	100
076	3"	76.2	92	42	600	126	1800	30.5	100
102	4"	101.6	123	42	600	126	1800	30.5	100
152	6"	152	175	42	600	126	1800	30.5	100
